Hybrid SolaX inverter X3-5.0-D G4 | Alma Solar® Nr. 1 of online solar panels
  • Limited promotion!
Hybrid SolaX inverter X3-5.0-D G4 | Alma Solar® Nr. 1 of online solar panels

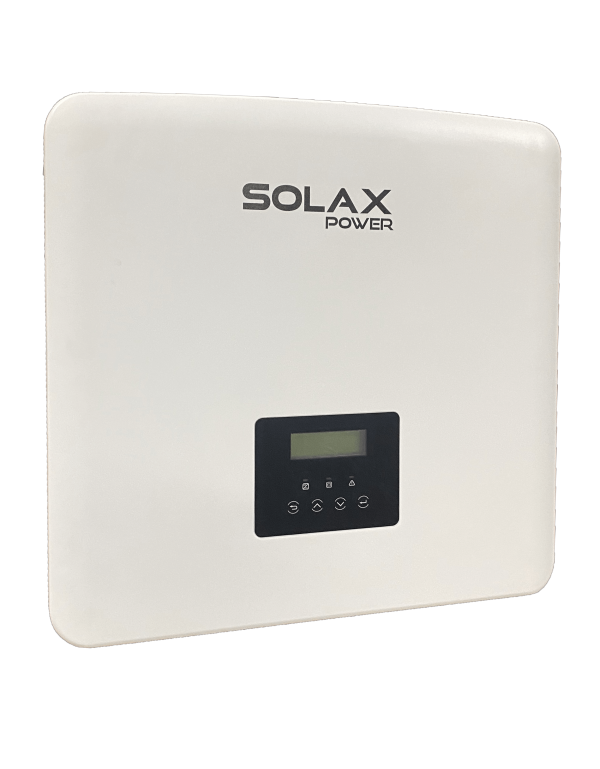

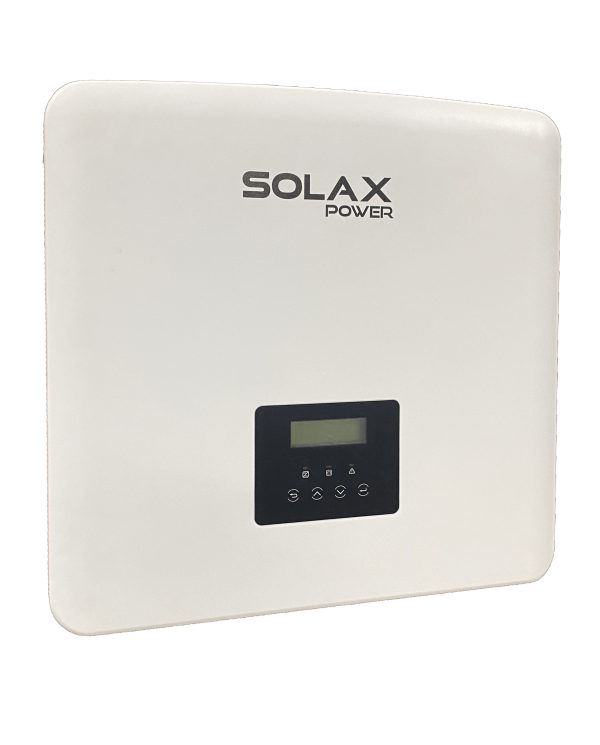

Hybrid SolaX inverter X3-5.0-D G4
Drag image to spin

Hybrid SolaX inverter X3-5.0-D G4

X3-Hybrid-5.0-D G4

WIFI Internet monitoring
Integrated high voltage battery management
Operates without a power network
Three-phase inverter
Management Excess solar power into the grid
Parallel up to 10 inverters
Dephasing enable

Only Triple Power batteries are compatible with the inverter.

At least 180 V must be connected to an X3 hybrid inverter.
It is necessary to connect at least 2 batteries to your X3 inverter due to the minimum voltage.

€1,555.00 VAT incl.

Hurry up! The clearance sale ends in:

Delivery within 3 to 4 working days after payment

Your VAT is calculated based on your country. Create your account and the correct VAT rate is automatically adjusted into your cart.

Your transport costs will be calculated in your basket. Free from €6,000 in Europe.

Description

Buy SolaX Power Hybrid X3-5.0-D G4 inverter at the lowest price - online only. The inverter determines the most economic source of electricity for you, between photovoltaic, batteries and the electricity network. It regulates battery charging to maximise their lifespan. The SolaX Power inverter puts your data online for free over using Wifi. You can analyse and monitor its performance online. If you are absent, it detects and automatically recharges your batteries. In the evening, you can use this free energy. You are afraid of not having enough power? The inverter can take electricity from the network, without any power limitation. In the event of power outages, it is also able to modulate itself to uphold your power supply. You can produce unlimited electricity.

WIFI Internet monitoring: You are not at home and you want to check that your solar panels are working properly? It's very easy using the Wifi Internet monitoring included in the Solax Power Hybrid X3-5.0-D G4. Data is transmitted for free onto Solax servers. You can see the real-time performance of your installation on the smartphone app. The ideal solution for assessing the efficiency of your solar panels and batteries.

Integrated high voltage battery management: The Solax X3-5.0-D G4 is the first inverter suitable for the smart management of your batteries' charging and discharging at 650 V. You can define the recharging source for your battery (e.g. with solar panels only or exclusively from the electricity network). You can also define a recharge time for the batteries (off-peak hours for example). By default, the Solax inverter prioritises electricity sources in the following order:1 = solar panels, 2 = solar batteries, 3 = networks. This priority can be modified in the inverter's settings.

Operates without a power network: The Solax Hybrid is an intelligent inverter capable of operating without an electrical network thanks to its EPS output. It runs between two sources of electricity: solar panels and solar batteries. Your garden shed will always have a power source.

Three-phase inverter: Connect your Solax Hybrid inverter on your house to a three-phase network.

Excess solar production is not injected into the grid: The Solax X3-5.0-D G4 is a smart inverter that regulates your solar panels' voltage to fit your needs precisely. E.g.: You need 2000 W, your solar panels produce 2500 W. The inverter will regulate the voltage to exactly 2000 W. You don't inject any power into the electrical grid. It is now prohibited to inject the solar excess into the grid without a reselling contract.

Parallel up to 10 inverters: Connect your SOLAX inverter in parallel with another SOLAX Hybrid or SOLAX FIT inverter to expand your needs. By adding a SOLAX FIT in parallel, you can increase your storage capacity and the power output of your installation via solar batteries. You define a Master inverter and up to 9 other slave inverters in order to cumulate your output power.

Dephasing enable: De SOLAX omvormer is in staat om op elke fase op uw behoeften te reageren om een zelfverbruik te realiseren dat overeenkomt met uw werkelijke behoeften.

Product Details

Data sheet

MPPT range :180...950V
Start voltage:180V
Max. input current :16A / 16A
Length x Height x Depth:503 x 503 x 199mm
Max. efficiency:97.6%
MPPT Tracker:2
Injection:Triphase
Max. input solar panel power:6000W
Max. power from the grid:No limit
Battery Type:Lithium
Max. charge / discharge:5000W
Battery voltage range:180...650V
Internet connection:Ethernet / Wifi
Inverter brand:SOLAX POWER
Product warranty:10 years
Place of manufacture:Asia
Inverter type:Hybrid inverter
Marque batterie:TRIPLE POWER
Compatible with ALMA SOLAR appYes
Shipping LabelColie

Specific References

EAN13101004020200
Installation manual

Videos

Warranty

Start procedure

Let us install it

With a little help from your friend ♪♫

With our  installers starting from 490 € tax incl.*

*price according to the numbers of products and the location

#1 - I configure my installation
via the configurator

#2 - I validate my order with the installation
on ALMA SOLAR

#3 - I receive the equipment

#4 - The installer contacts me and we make
an appointment 48 hours maximum after receipt

#5 - Validation of the administrative part with
network manager and certification

#6 - I validate my installation,
the installer is paid
