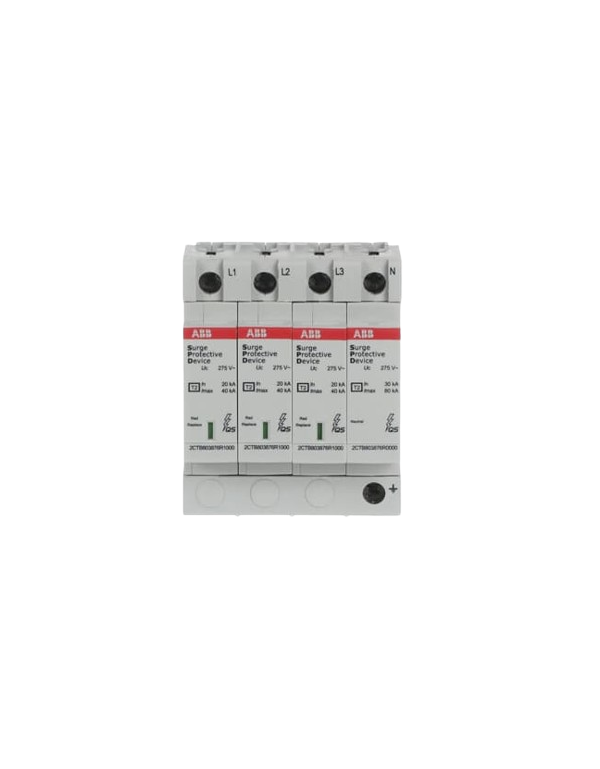

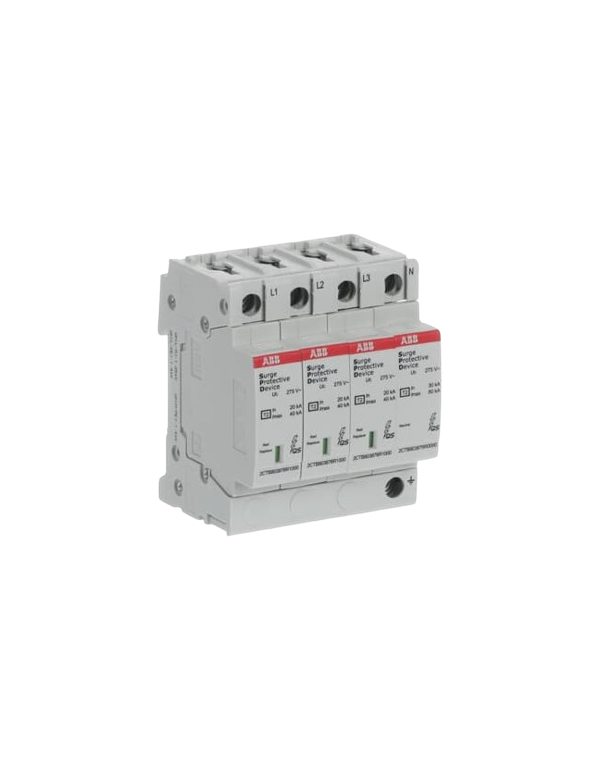

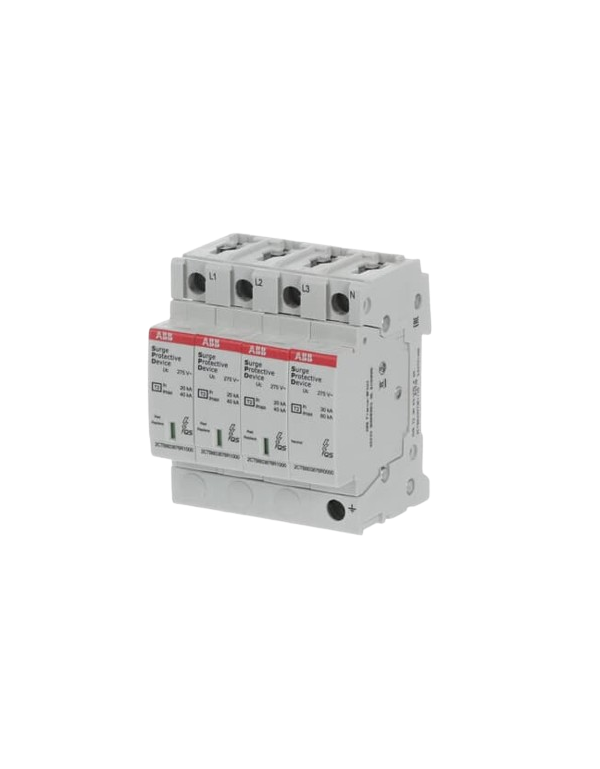

ABB Surge protector OVR T2 3N 40-275 P QS Type 2

The OVR T2 3N 40-275 P QS is a surge protection device of type 2. It is equipped with the thermal monitoring QuickSafe® and is used to protect against indirect lightning and overvoltage. This device consists of a base part and a replaceable protection module. It was mainly designed for use in secondary distribution and final circuits.

Technical Details:

• Rated voltage: 230 V AC
• Nominal voltage: 230 / 400 V
• Maximum continuous operating voltage: (L-PE) 275 V
• Surge current: 100 kA
• Protection class: II
• Protection level: (L-N) 1.25 kV, (N-PE) 1.4 kV
• Short-circuit-proof Icc: 100 kA
• Number of protected poles and conductors: 4
• Version: Plug-in
• Type of mounting: DIN rail

This device is also suitable for preventive maintenance and has a status indicator. It was manufactured according to the EN 61643-11 standard.

Dimensions:

• Width: 71.2 mm
• Height: 88 mm
• Depth: 58 mm
• Weight: 0.48 kg

This product is available in a quantity of 1 carton and has a gross weight of 500g.
