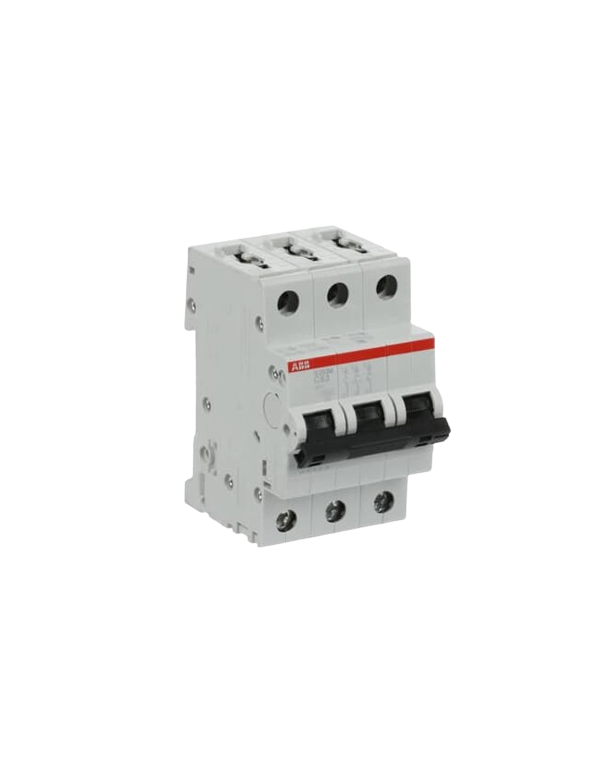

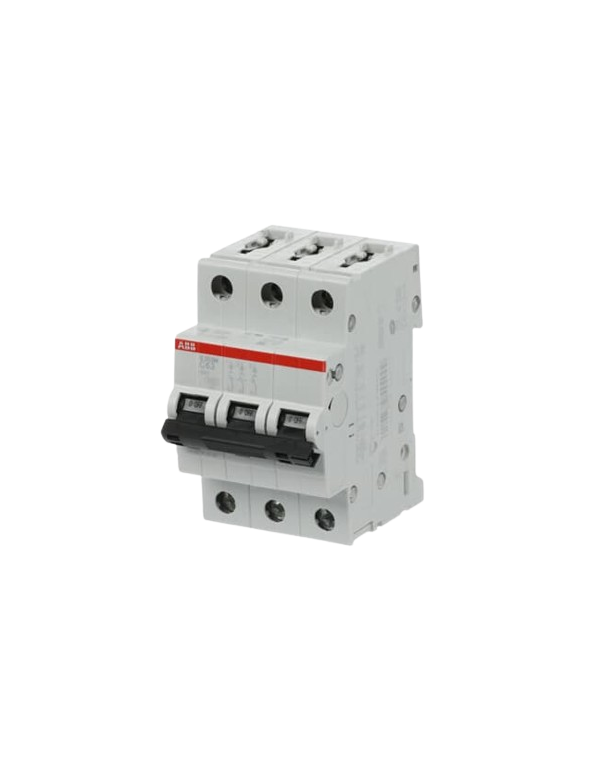

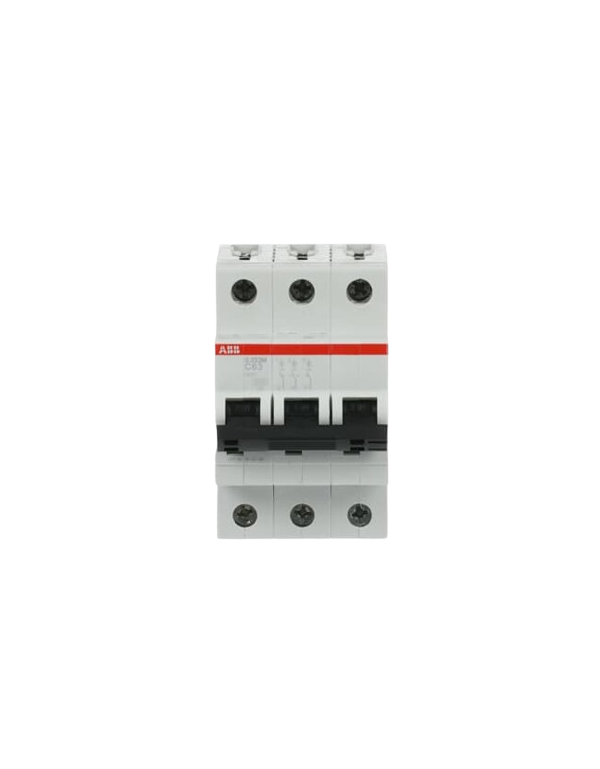

ABB S203M-C63 circuit breaker 3P 63A C-characteristic, 10 kA

The S203M-C63 circuit breaker with the order number 2CDS273001R0634 is a reliable and high-quality device for protecting cables and wires from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. It complies with the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN60947-2 and UL1077 and CSA 22.2 No.235.

With its unique, patented connecting terminal, this circuit breaker enables a simple and secure contact and handling using a pressure plate. For better visibility during wiring, the connection opening for leads is above the connection opening for the phase bus. Conductor cross-sections up to 35 mm² can be connected directly to the device via the connection terminal with IP20 insulation.

In addition, the extensive range of accessories offers everything you need for your installation tasks. Each device is subjected to three intensive tests for quality and performance before delivery, which makes the S 200 M fit for worldwide use.
