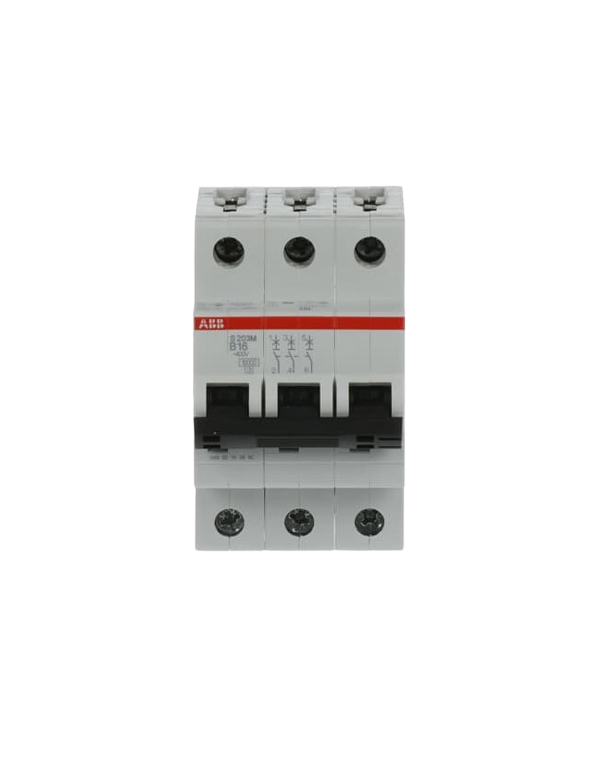

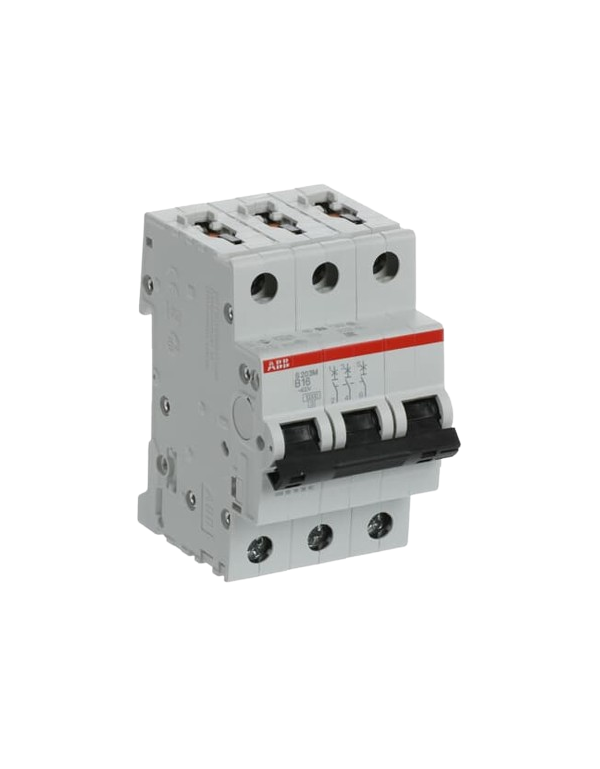

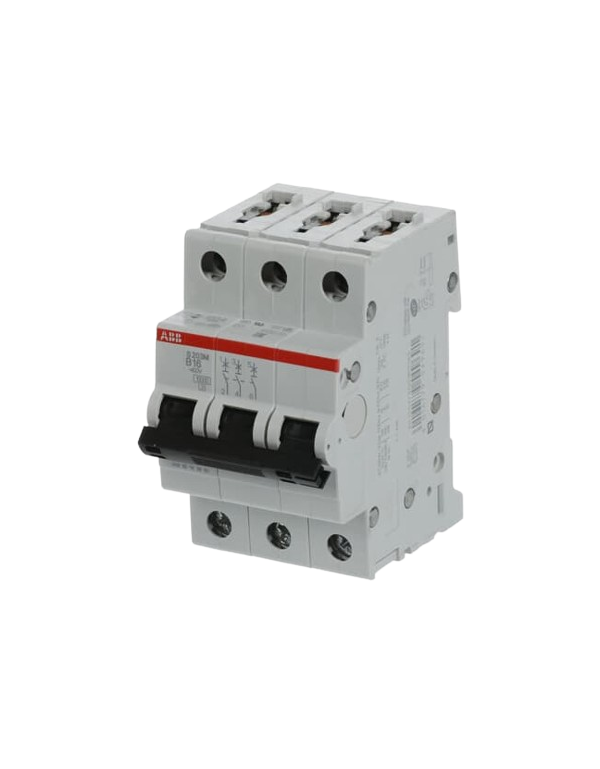

ABB S203M-B16 circuit breaker 3P 16A B-characteristic, 10 kA

The S203M-B16 Circuit Breaker provides protection for cables and wires against overload and short circuit according to DIN VDE 0100-430 and DIN VDE 0100-530. It complies with construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN60947-2 and UL1077 and CSA 22.2 No. 235. The patented terminal allows for simple and secure contact and handling. Thanks to a comprehensive range of accessories and numerous approvals, the S 200 M can be used worldwide.

Some important technical data are: - Rated operating voltage: 400 V AC (according to IEC 60898-1), 440 V AC (according to IEC 60947-2) - Rated current: 16 A - Rated breaking capacity: 10 kA - Frequency: 50 Hz Connection options include busbar 10 / 10 mm², flexible with ferrule 0.75 ... 25 mm², rigid 0.75 ... 35 mm² and multi-wired 0.75 ... 35 mm².

In addition, the product is environmentally friendly, having a recyclability rate of 90.6%, and the ambient operating temperature is -25 ... +55 °C.
