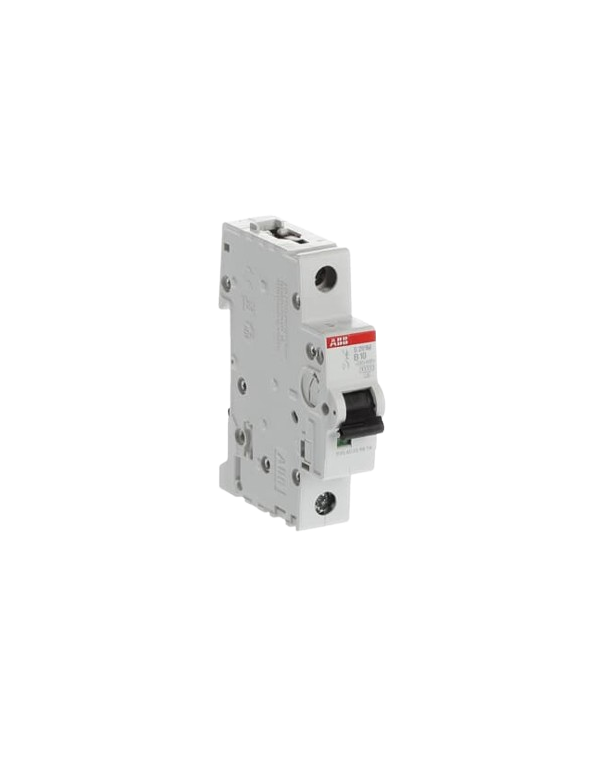

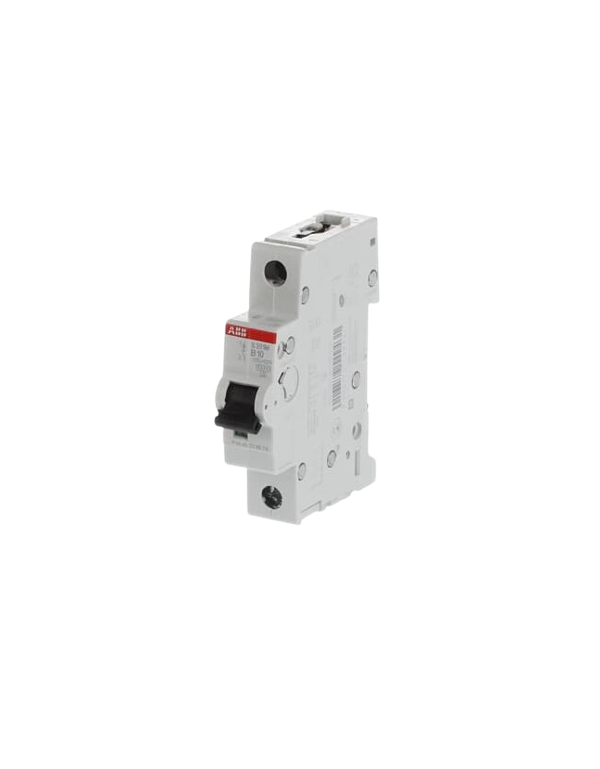

ABB S201M-B10 circuit breaker 1P 10A B-characteristic, 10 kA

The S201M-B10 circuit breaker offers a solution for protecting cables and lines from overload and short circuits in accordance with DIN VDE standards. The circuit breakers comply with construction regulations, including DIN VDE 0641-11, IEC/EN 60898-1, and more. A patented terminal clamp ensures easy and safe contact and handling. Conductor cross-sections up to 35 mm² can be directly connected to the device via the terminal clamp.

The device has a product lifespan that is supported by an extensive range of accessories and numerous approvals. Each device undergoes intensive tests for quality and performance before delivery.

The technical data includes an operating voltage of max. 253 V AC and min. 12 V DC. The rated current is 10 A. The rated frequency is 50...60 Hz and the degree of protection is IP20/IP40.

In addition to this, the circuit breaker offers a high resistance to vibrations and shocks and complies with RoHS directives. Mounting on a DIN rail is possible.

The net weight is 0.125 kg and the dimensions are: width - 17.5 mm, height - 88 mm, depth - 69 mm.
