Striebel & John DD37V11VB Complete cabinet for 40A 1 meter & 1 reserve, 72 & 48TE, BH3, 3-field 16 mm²

Name: Striebel & John DD37V11VB Complete cabinet for 40A 1 meter & 1 reserve, 72 & 48TE, BH3, 3-field 16 mm²
Brand: Alma Solar
SKU: 2CPX054442R9999
Price: 479.9 EUR
Availability: BackOrder

Ref: 2CPX054442R9999

Reviews (0)

- Model: DD37V11VB

- Usage: Indoor

- Installation types: Surface-mounted, Flush-mounted, Partially inlaid

- Protection: Class II, IP54

€479.90 _{VAT incl.}

Payment from 3 to 12 months

How is VAT calculated?

Your VAT is calculated based on your country. Create your account and the correct VAT rate is automatically adjusted into your cart.

Shipping costs

Your transport costs will be calculated in your basket. Free from €6,000 in Europe.

Description

The DD37V11VB is a meter cabinet from the ComfortLine A series, manufactured in Germany. This complete cabinet offers flexibility through its technology and structure. With a side extension option, it is ideal for indoor use and designed for surface-mounted, flush-mounted, and partially inlaid installation. It is characterized by its Protection Class II (double insulated) and Protection Type IP54 and bears the VDE certification mark.

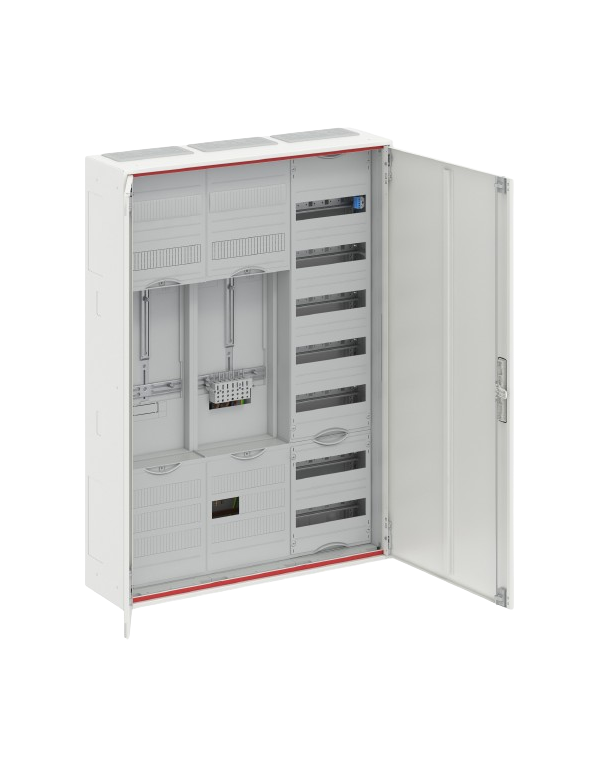

The cabinet has a double door and is equipped with a standard lock. The door opening is 120 degrees and can be attached on both the right and left. The case and the door are made of sheet steel. The product has a powder-coated surface in RAL 9016 (traffic white) and the covers are made of plastic.

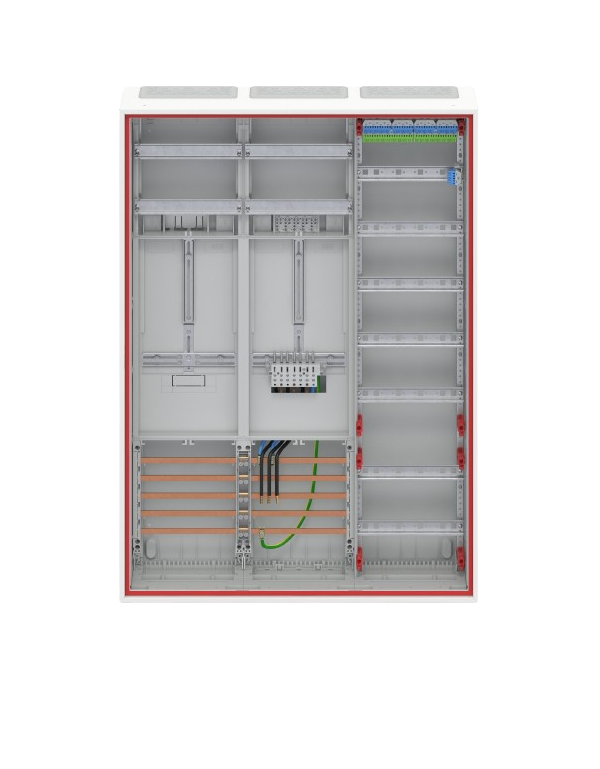

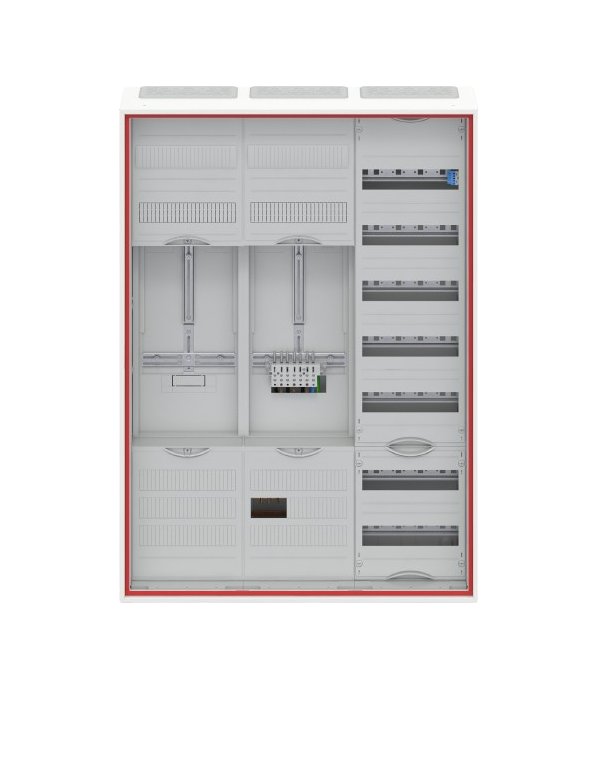

The grid-side connection space at the meter location is equipped with a busbar. The meter location is wired and designed for the TN-S network system. The cabinet has a total of one meter space and one reserve space. The number of distribution rows is 7.

The operating voltage of the meter cabinet is Ue 400V AC at a frequency of 50/60 Hz. The rated current is In 63 A. The product is delivered with a door installed and fully assembled as a complete cabinet.
