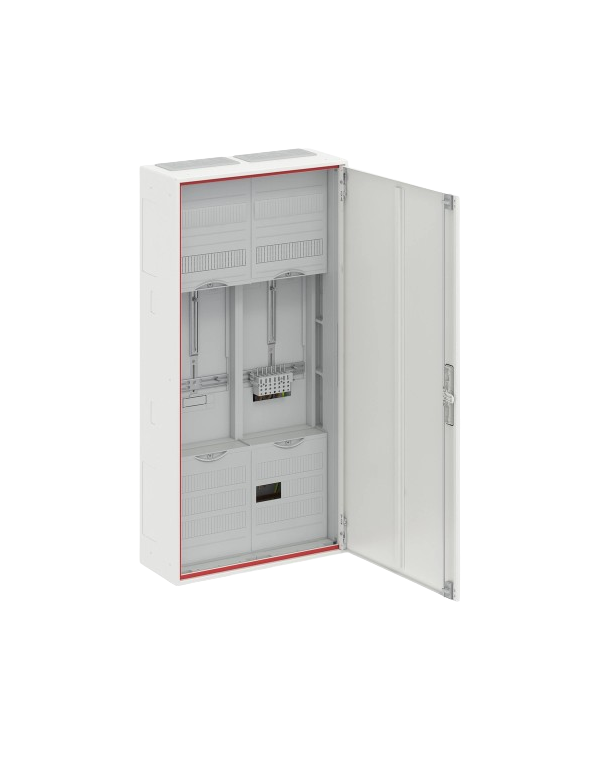

Striebel & John DD27V11B Complete cabinet for 40A 1 meter & 1 reserve, 48TE, BH3, 2-field 16 mm²

Meter cabinet, ComfortLine A series, complete cabinet, with meter cross, mounting option: lateral, mounting type: surface-mounted, flush-mounted, partially recessed, for indoor use, with door, protection class II (protective insulation), protection rating IP54, with VDE test mark, applicable standards: DIN VDE 0603-1, IK code 7, rated operating voltage Ue 400V AC 50/60 Hz, rated current In 63 A, powder-coated, in RAL 9016, sheet steel housing, single-leaf door, sheet steel door, with standard lock, door opening angle 120 degrees, door hinges right or left, Rear panel made of sheet steel / plastic, cable entry mounted at the top via membrane flange, enclosed at the bottom via 2x cable entry flange, pre-stamped at the side via flange opening, rear panel cable entry pre-stamped, dimensions in mm (H x W x D): 1100 x 550 x 215, meter location wired, TN-S mains system, 5-pole, meter plug-in terminal, Meter location connection compartment on the mains side: with busbar, prepared for SH switch, feed-in terminals up to 35 mm², Meter location connection compartment on the system side: with main line branch terminal, number of meter spaces 1, number of reserve spaces 1, latching unit 7 RE, overall height 3, bay width 2, space units 168, plastic covers, sealable quick-release lock and 90 degree push-turn lock, RAL 7035
