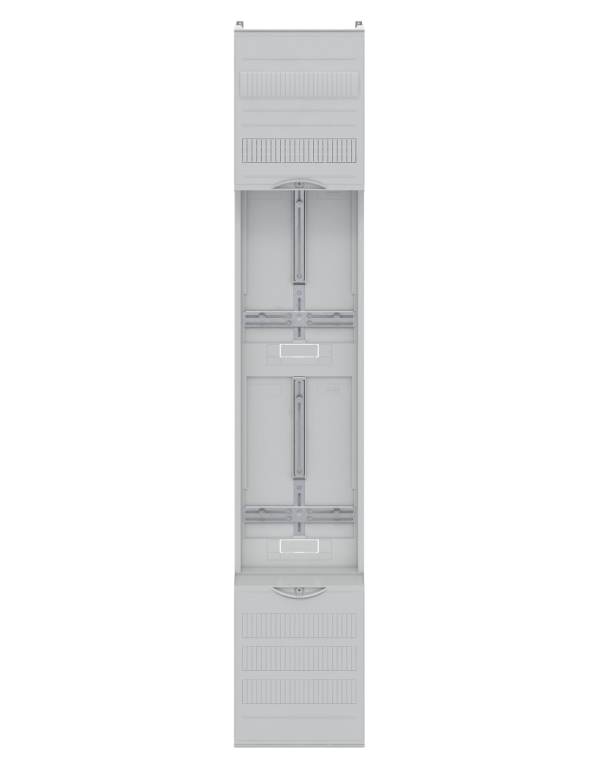

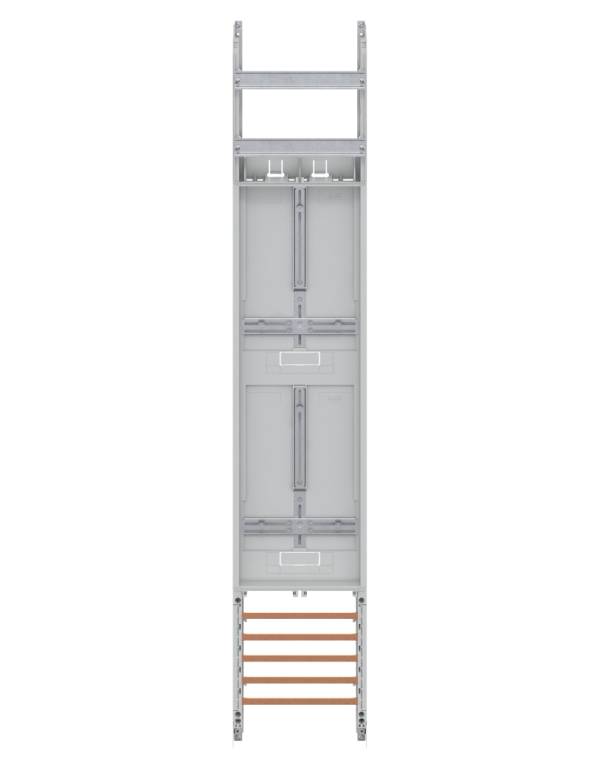

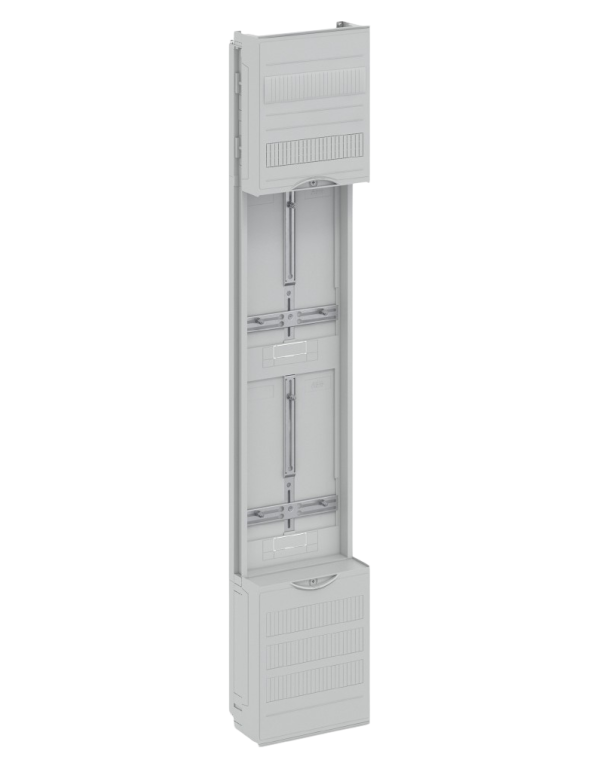

Striebel & John FD19D Meter field BH5

The FD19D is a meter box from the ComfortLine series. It is suitable for the ComfortLine series and comes with an empty field and meter cross. Its protection class is IP2XC and it conforms to the standards DIN VDE 0603-1. The rated current is 63 A, in RAL 7035. Its dimensions are 1350 x 250 x 160 mm. Mains-side connection space meter position: with busbar, two reserve spaces, pluggable quick release, RAL 7035

The color is light gray (RAL 7035). The connection area is 300 mm both at the top and bottom. The nominal dimensions (outward) are as follows: width 1 FB or 250 mm, height 5 BH or 1350 mm, depth 160 mm. This meter position is unwired and has 108 unit spaces. The covers are made of plastic.
