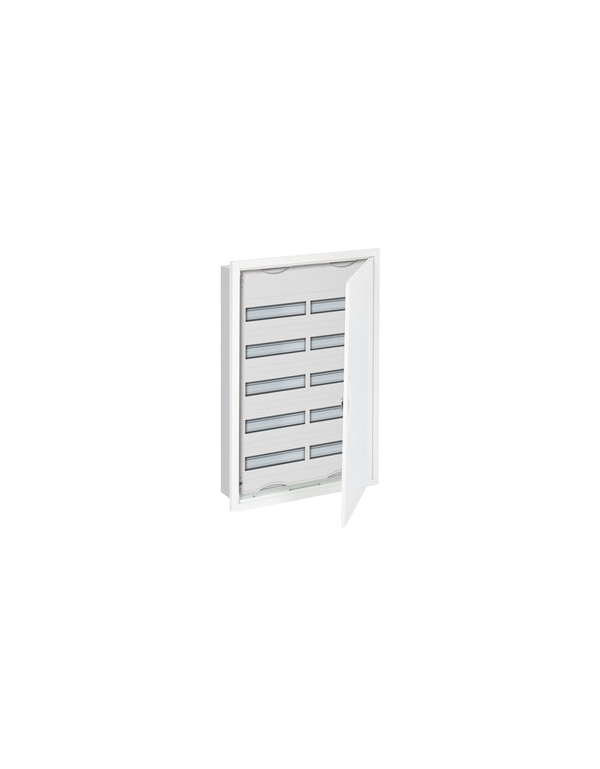

Striebel & John U52 Recessed small distribution board 5-row IP31, 834 x 560 x 120 mm, 120TE, 2-field

Front meter of the U52 series, partly assembled cabinet, Monday in the interior. With frame and door, protection class II (insulated protection), but also with protection class I with grounding set (accessory). The protection degree is IP31. The applicable standards are DIN EN 61439-1, VDE 0660-600-1, DIN EN 61439-3, VDE 0660-600-3. Rated voltage Ue 400V AC 50/60 Hz, rated current In 125 A. Powder coated in RAL 9016, steel sheet housing. Steel sheet doors, possible door stop right or left. Dimensions in mm (H x W x D): 834 x 560 x 120. Offers 120 unit slots.

The product includes a N/PE Quick connector and an integrated cable clamp rail. Delivery is with cover frame and door.

Note: Technical changes to the product and changes in this document can be made at any time without prior notice. The agreed properties are decisive for orders. No responsibility is assumed for possible errors or omissions in this document.
